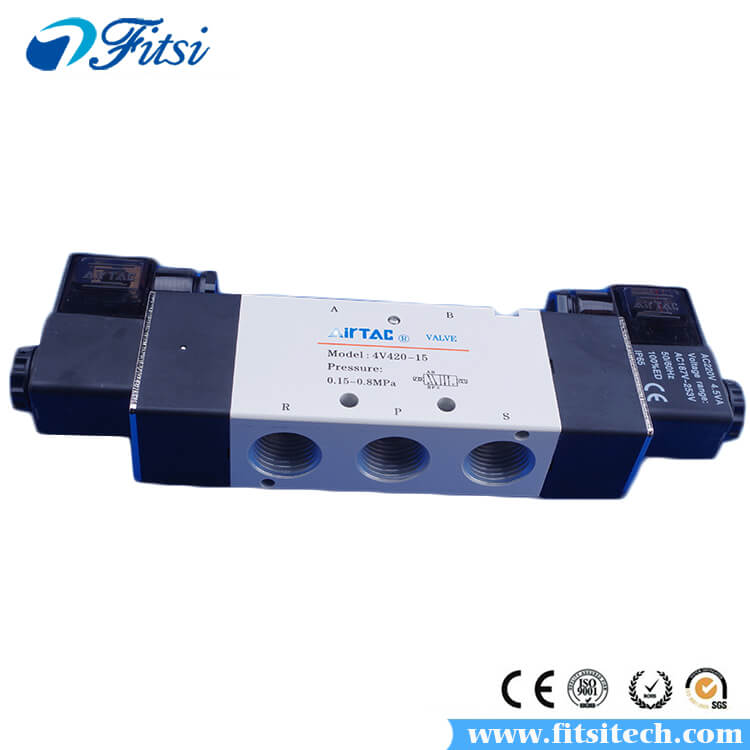

Product Name：4V400 Series Pneumatic Solenoid Valve Product Model：4V410-15 4V420-15 Valve Type：Solenold Valve, Directional valve Brand：AiRTAC Fluid： Air Position & Way Number：5 Port 3 Position Acting： Internal pilot or external pilot
| Model: |
4V410-15 |
4V420-15 | |
| Fluid: | Air(to be filtered by 40μm filter element) | ||
| Acting: | Internal pilot or external pilot | ||
| Port Size: | In=Out=Exhaust=1/2" | ||
| Orifice Size: | 50.0mm²(Cv=2.79) | ||
| Valve Type: | 5 Port 2 Position | ||
| Operating Pressure: | 0.15~0.8MPa(21~114psi) | ||
| Proof Pressure: | 1.5MPa(215psi) | ||
| Temperature: | -20~70 | ||
| Material of Body: | Aluminum Alloy | ||
| Lubrication: | Not Required | ||
| Max Frequency: | 3 Cycle/Sec | ||
| Weight: | 590g | 720g | |
| Standard Voltage: | AC220V,AC110V,AC24V,DC24V,DC12V | ||
| Scope of Voltage: | AC:±15% DC:±10% | ||
| Power Consumption: | AC:3.5VA DC:3.0W | ||
| Protection: | IP65(DIN40050) | ||
| Temperature Classification: | B Class | ||
| Electrical Entry: | Termina,Grommet | ||
| Activating Time: | 0.05 Sec and Below | ||
① PT thread,NPT thread and G thread are available.
② Once lubricated air is used,continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent recommended.
③ The maximum actuation frequency is the no-load state.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Three position solenoid valves have three kinds of central function for your choice.
4.Double control solenoid valves have memory function.
5.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6.No need to add oil for lubrication.
7.It is available to form integrated valve group with the base to save installation space.
8.Affiliated manual devices are equipped to facilitate installation and debugging.
9.Several standard voltage grades are optional.
