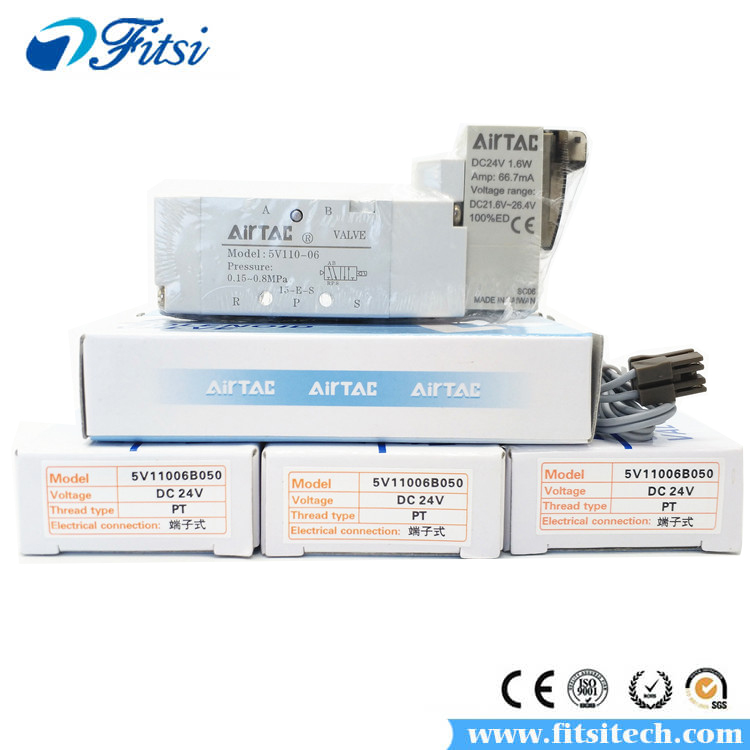

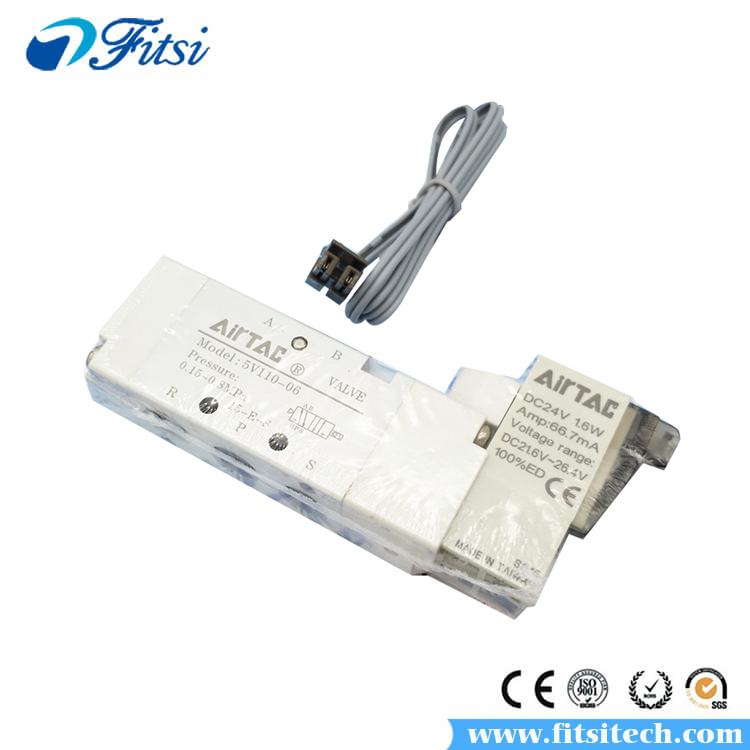

产品名称：5V系列电磁阀 产品型号：5V310-08 5V320-08 5V330-08 5V310-10 5V320-10 5V330-10 5V410-15 5V420-15 5V430-15 类型：电磁阀 品牌： 亚德客（AIRTAC） 工作介质： 空气 作动方式： 先导式
| 型号: | 5V110-M5 | 5V120-M5 | 5V130-M5 | 5V110-06 | 5V120-06 | 5V130-06 |
|
接口管径: |
进气=出气=排气=M5 | 进气=出气=排气=1/8" | ||||
| 有效截面积: | 5.5mm² | 5.0mm² | 12.0mm² | 9.0mm² | ||
| Cv值: | 0.31 | 0.28 |
0.67 |
0.50 | ||
|
重量:(g) |
120 | 175 | 200 | 120 | 175g | 200 |
| 位置数: | 五口二位 | 五口三位 | 五口二位 | 五口三位 | ||
| 型号: | 5V210-06 | 5V220-06 | 5V230-06 | 5V210-08 | 5V220-08 | 5V230-08 |
| 接口管径: | 进气=出气=排气=1/8" | 进气=出气=1/4" 排气=1/8" | ||||
| 有效截面积: | 14.0mm² | 12.0mm² | 16.0mm² | 12.0mm² | ||
| Cv值: | 0.78 |
0.67 |
0.89 | 0.67 | ||
| 重量: | 220g | 320g |
360g |
220g |
320g |
360g |
| 位置数: | 五口二位 | 五口三位 | 五口二位 | 五口三位 | ||
| Model: | 5V310-08 | 5V320-08 | 5V330-08 | 5V310-10 | 5V320-10 | 5V330-10 |
| Port size: | 进气=出气=排气=1/4" | 进气=出气=排气=3/8" 排气=1/4" | ||||
| Orifice Size: | 30.0mm² | 18.0mm² | 36.0mm² | 21.5mm² | ||
| Cv Valve: | 1.68 | 1.00 |
2.00 |
1.20 | ||
| Weight: | 310g | 400g | 450g | 310g | 400g | 450g |
| Max Frequency: | 5次/秒 | 3次/秒 | 5次/秒 | 3次/秒 | ||
| Valve Type: | 五口二位 | 五口三位 | 五口二位 | 五口三位 | ||
| Model: |
5V410-15 |
5V420-15 | 5V430-15 | |||
| Port size: | 进气=出气=排气=1/2" | |||||
| Orifice Size: | 50.0mm² | 30.0mm² | ||||
| Cv Valve: |
2.79 |
1.68 |
||||
| Weight: | 590 | 720 |
770 |
|||
| Max Frequency: |
3次/秒 |
|||||
| Valve Type: | 五口二位 | 五口三位 | ||||
| Fluid: | 空气(经40μm以上滤网过滤) | |||||
| Acting: | 内部引导式 | |||||
| Operating Pressure: | 0.15~0.8MPa(21~114psi) | |||||
| Proof Pressure: | 1.2MPa(175psi) | |||||
| Temperature: | -20~70℃ | |||||
| Material of Body: | 铝合金 | |||||
| Lubrication: | 不需要 | |||||
①接管牙型有NPT、G牙可供选择；
1.Electrical entry is terminal, horizontal and vertical insertion can freely switch.
2.Inner exhauststructure, which can collect pilot airflow, and then exhaust intensively from R,S port.
3.Die-cast molding with aluminum alloy for body, the shape of cavity is reasinable, which can increase valve's flow.
4.Threaded type and quick connector type are optional, and can integrate manifold to form valve group to save space.
Installation & Usage:
