亚德客不锈钢迷你型气缸 MI16X175 MI16X200 MI16X225 MI16X250 MI系列迷你气缸

Products

Mimi Cylinder

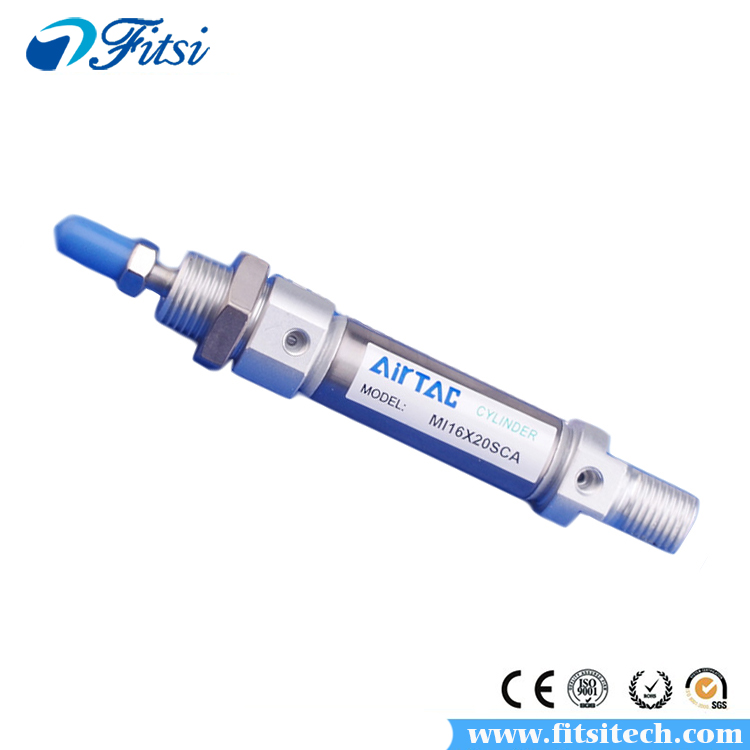

亚德客不锈钢迷你型气缸 MI16X175 MI16X200 MI16X225 MI16X250 MI系列迷你气缸

亚德客不锈钢迷你型气缸 MI16X175 MI16X200 MI16X225 MI16X250 MI系列迷你气缸

产品名称：MI系列迷你气缸
产品型号：MI16X175 MI16X200 MI16X225 MI16X250
类型：迷你气缸，气缸
品牌： 亚德客（AiRTAC）
工作介质： 空气
作动方式： 复动型，单动压出型，单动引入型

Inquire

Download:

Specification:

规格：

内径（mm）:		8	10	12	16	20	25	32	40
作动型式：		复动型，单动压出型，单动引入型
		-			复动缓冲型
工作介质：		空气（经40μm以上滤网过滤）
使用压力范围：	复动型：	0.1~1.0MPa（15~145psi）(1.0~10.0bar)
	单动型：	0.2~1.0MPa（28~145psi）(2.0~10.0bar)
保证耐压力：		1.5MPa（215psi）(15bar)
工作温度（℃）:		-20~70
使用速度范围 (mm/s)：		复动型: 30~800 单动型: 50~800
行程公差范围：		0~150(0~+1.0) >150(0~+1.4)
缓冲型：		MIC系列: 可调缓冲其他系列: 防撞垫
接管口径：		M5x0.8				PT1/8			PT1/4

行程：

内径(mm)			标准行程(mm)	最大行程(mm)	容许行程(mm)
MI	-	8	10 15 20 25 30 40 50 60 75 80 100 125 150	150	200
		10	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	200
		12	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250	250	500
	MIC	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	600
		20		500	800
		25		500	800
		32		500	800
		40		500	800
MID MIJ	-	8	10 15 20 25 30 40 50 60 75 80 100	100	-
		10	10 15 20 25 30 40 50 60 75 80 100	100	-
		12	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	-
	MICD MICJ	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
		20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
		25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
		32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
		40		500	-

内径(mm)		标准行程(mm)
MSI MTI	8	10 15 20 25 30 40 50
	10	10 15 20 25 30 40 50
	12	10 15 20 25 30 40 50
	16	10 15 20 25 30 40 50 60 75 80 100
	20	10 15 20 25 30 40 50 60 75 80 100 125 150
	25	10 15 20 25 30 40 50 60 75 80 100 125 150
	32	10 15 20 25 30 40 50 60 75 80 100 125 150
	40	10 15 20 25 30 40 50 60 75 80 100 125 150

Product Feature:

1.In accordance with ISO6432 standard(Φ8~Φ25).

2.Front and back cover owns fixed bumper pad which can reduce the impact of direction-change of the cylinder.

3.There are several mode of back cover, which makes the installation of cylinder more convenient.

4.Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.

5.Piston rod and cylinder body with the material of stainless steel make the cylinder adapt general working environment with corrosivity.

6.There are cylinders and accessories with several specifications for installation for your choice.

Installation & Usage:
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.

2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.

3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.

4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.

5.The medium used by cylinder shall be filtered to 40μm or below.

6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.

7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.

8.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.

9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.

Order Code:

Symbol:

MI16X10CA	MI16X75U	MI16X250R	MI16X15SCA	MI16X160SU	MI16X125SCM
MI16X15CA	MI16X80U	MI16X300R	MI16X20SCA	MI16X175SU	MI16X160SCM
MI16X20CA	MI16X100U	MI16X350R	MI16X25SCA	MI16X350SU	MI16X175SCM
MI16X25CA	MI16X125U	MI16X400R	MI16X30SCA	MI16X400SU	MI16X350SCM
MI16X30CA	MI16X150U	MI16X450R	MI16X40SCA	MI16X450SU	MI16X400SCM
MI16X40CA	MI16X160U	MI16X500R	MI16X50SCA	MI16X500SU	MI16X450SCM
MI16X50CA	MI16X175U	MI16X10CM	MI16X60SCA	MI16X10SR	MI16X500SCM
MI16X60CA	MI16X200U	MI16X15CM	MI16X75SCA	MI16X15SR	MI16X25SCM
MI16X75CA	MI16X250U	MI16X20CM	MI16X80SCA	MI16X20SR	MI16X25SR
MI16X80CA	MI16X300U	MI16X25CM	MI16X100SCA	MI16X30SR	MI16X25SU
MI16X100CA	MI16X350U	MI16X30CM	MI16X125SCA	MI16X40SR	MI16X50SCM
MI16X125CA	MI16X400U	MI16X40CM	MI16X150SCA	MI16X60SR	MI16X50SR
MI16X150CA	MI16X450U	MI16X50CM	MI16X160SCA	MI16X80SR	MI16X50SU
MI16X160CA	MI16X500U	MI16X60CM	MI16X175SCA	MI16X125SR	MI16X75SCM
MI16X175CA	MI16X10R	MI16X75CM	MI16X200SCA	MI16X160SR	MI16X75SR
MI16X200CA	MI16X15R	MI16X80CM	MI16X250SCA	MI16X175SR	MI16X75SU
MI16X250CA	MI16X20R	MI16X100CM	MI16X300SCA	MI16X200SR	MI16X100SCM
MI16X300CA	MI16X25R	MI16X125CM	MI16X350SCA	MI16X300SR	MI16X100SR
MI16X350CA	MI16X30R	MI16X150CM	MI16X400SCA	MI16X350SR	MI16X100SU
MI16X400CA	MI16X40R	MI16X160CM	MI16X450SCA	MI16X400SR	MI16X150SCM
MI16X450CA	MI16X50R	MI16X175CM	MI16X500SCA	MI16X450SR	MI16X150SR
MI16X500CA	MI16X60R	MI16X200CM	MI16X10SU	MI16X500SR	MI16X150SU
MI16X10U	MI16X75R	MI16X250CM	MI16X15SU	MI16X10SCM	MI16X200SCM
MI16X15U	MI16X80R	MI16X300CM	MI16X20SU	MI16X15SCM	MI16X200SU
MI16X20U	MI16X100R	MI16X350CM	MI16X30SU	MI16X20SCM	MI16X250SCM
MI16X25U	MI16X125R	MI16X400CM	MI16X40SU	MI16X30SCM	MI16X250SR
MI16X30U	MI16X150R	MI16X450CM	MI16X60SU	MI16X40SCM	MI16X250SU
MI16X40U	MI16X160R	MI16X500CM	MI16X80SU	MI16X60SCM	MI16X300SCM
MI16X50U	MI16X175R	MI16X10SCA	MI16X125SU	MI16X80SCM	MI16X300SU
MI16X60U	MI16X200R
