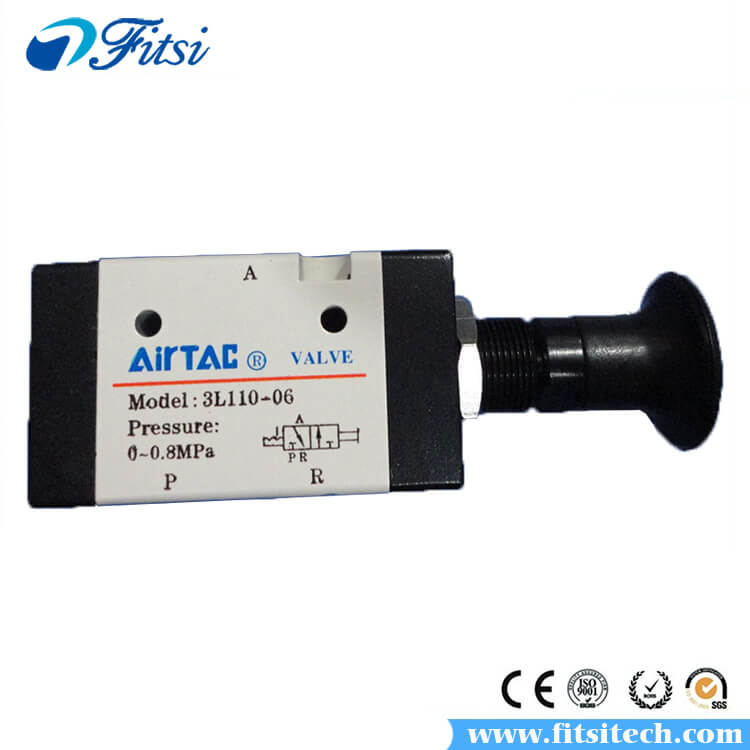

Product Name：3L Series Pneumatic Solenoid Valve Product Model：3L110-06 3L210-06 3L210-08 3L310-08 3L310-10 Valve Type：Solenold Valve, Manual Hand Pull Valve Brand：AirTAC Fluid： Air Position & Way Number：3 Port 2 Position Acting： Manual control direct acting type
| Model: | 3L110-06 | 3L210-06 | 3L210-08 | 3L310-08 | 3L310-10 |
| Fluid: | Air(to be filtered by 40μm filter element) | ||||
| Acting: | Manual control direct acting type | ||||
| Port Size: | PT1/8 | PT1/4 | PT3/8 | ||
| Orifice Size: | 12.0mm²(Cv=0.67) | 14.0mm²(Cv=0.78) | 16.0mm²(Cv=0.89) | 25mm²(Cv=1.39) | 30.0mm²(Cv=1.67) |
| Valve Type: |
3 Port 2 Position |
||||
| Operating Pressure: | 0~0.8MPa(0~114psi) | ||||
| Proof Pressure: | 1.5MPa(215psi) | ||||
| Temperature: | -20~70℃ | ||||
| Material of Body: | Aluminum Alloy | ||||
| Lubrication: | Not Required | ||||
① PT thread,NPT thread and G thread are available.
② Once lubricated air is used,continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent recommended.
1.Manual control valve, same direction with the spool. Easy control, precise and reliability.
2.Spool type design, excellent sealing performance, compact size, lighter weight, easy repairing
3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
4.No need to add oil for lubrication.
5. Multi-mounting helps to install and apply.
Installation & Usage:
1.Before installing, be sure the valve hasn't been damaged via transportation.
2.It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3.Please notice whether the installation condition accords with technical requirements (such as“act-uation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4.Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5.Take measure to avoid vibration and frozen.
6.Firstly press the base gasket into the base, and then connect the base with the valve body by the affiliated screws. The base gasket can be pressed into the installation places that are not used temporarily, and then seal them with affiliated blank cap. When the system expands, take the blank cap off and install relative air valves;
7.To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
