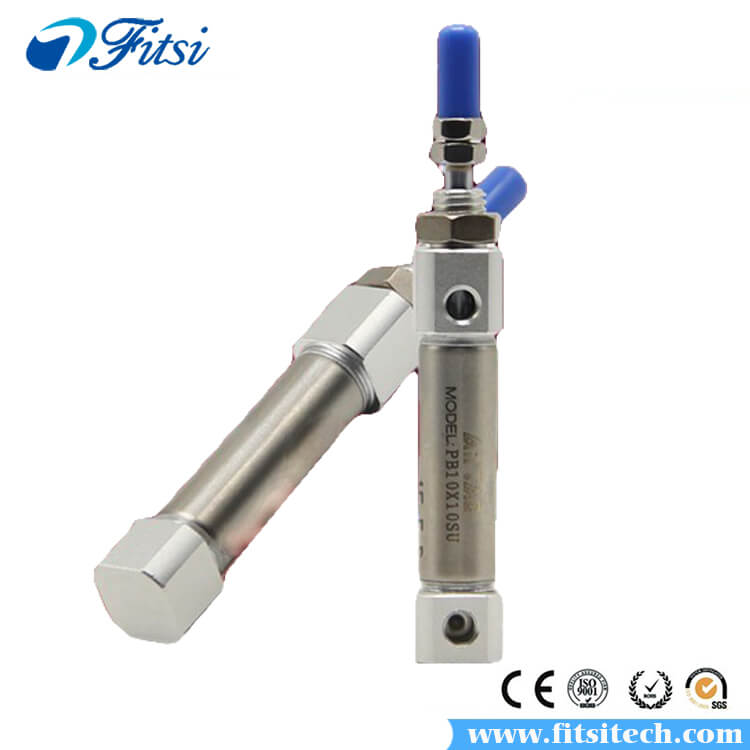

产品名称：PB系列迷你气缸 产品型号：PB10X40 PB10X50 PB10X60 PB10X75 PB10X80S 品牌： 亚德客（AiRTAC） 工作介质： 空气 作动方式： 复动型，单动压出型，单动引入型
规格：
| 内径（mm）: | 4 | 6 | 10 | 12 | 16 | |
| 作动型式： | 复动型，单动押出型 | 复动型，单动押出型，单动引入型 | ||||
|
工作介质： |
空气（经40μm以上滤网过滤） | |||||
| 使用压力范围： | 复动型： | 0.2~0.7MPa（28~100psi）(2.0~7.0bar) | 0.1~0.7MPa（15~100psi）(1.0~7.0bar) | |||
| 单动型： | 0.3~0.7MPa（36~100psi）(3.0~7.0bar) | 0.2~0.7MPa（28~100psi）(2.0~7.0bar) | ||||
| 保证耐压力： | 1.1MPa（160psi）(11bar) | |||||
| 工作温度（℃）: | -20~70 | |||||
| 使用速度范围 (mm/s)： | 50~500 | 50~800 | ||||
| 行程公差范围： | (0~+0.5) | 0~150(0~+1.0) >150(0~+1.4) | ||||
| 缓冲型： | 无缓冲 | 防撞垫 | ||||
| 接管口径： | 管接型 | M5x0.8 | ||||
行程：
| 内径(mm) | 标准行程(mm) | 最大行程(mm) | 容许行程(mm) | ||
| PB | 4 |
5 10 15 20 |
20 | 20 | |
| 6 | 10 15 20 25 30 40 50 60 | 60 | 60 | ||
| 10 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | 200 | ||
| 12 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | 200 | ||
| 16 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | 300 | ||
| PBD | - | 6 | 5 10 15 20 25 30 40 50 | 50 | - |
| PBJ | 10 | 10 15 20 25 30 40 50 60 75 80 100 | 100 | - | |
| 12 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | - | ||
| 16 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | - | ||
| 内径(mm) | 标准行程(mm) | ||
| PSB | - | 4 | 5 10 15 20 |
|
PBT |
6 | 5 10 15 20 25 30 40 50 60 | |
| 10 | 5 10 15 20 25 30 40 50 60 | ||
| 12 | 5 10 15 20 25 30 40 50 60 | ||
| 16 | 5 10 15 20 25 30 40 50 60 | ||
1.JIS standard is implemented.
2. It belongs to mini cylinder that has compact structure, small volume and light weight.
3.The guide precision of piston rod is high and no additional lubricant is needed.
4.PB4 and PB6 can only be front mounted. PB10, PB12 and PB16 has the flexibility of both front and rear mount.
5.Piston rod stainless steel barrel make the cylinder adapt general corrosive working environment.
6.There are cylinders and accessories with several specifications for installation for your choice.
7.It has small cylinder diameter and quick reaction, suitable for the working environment with higher frequency.
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40μm or below.
6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
