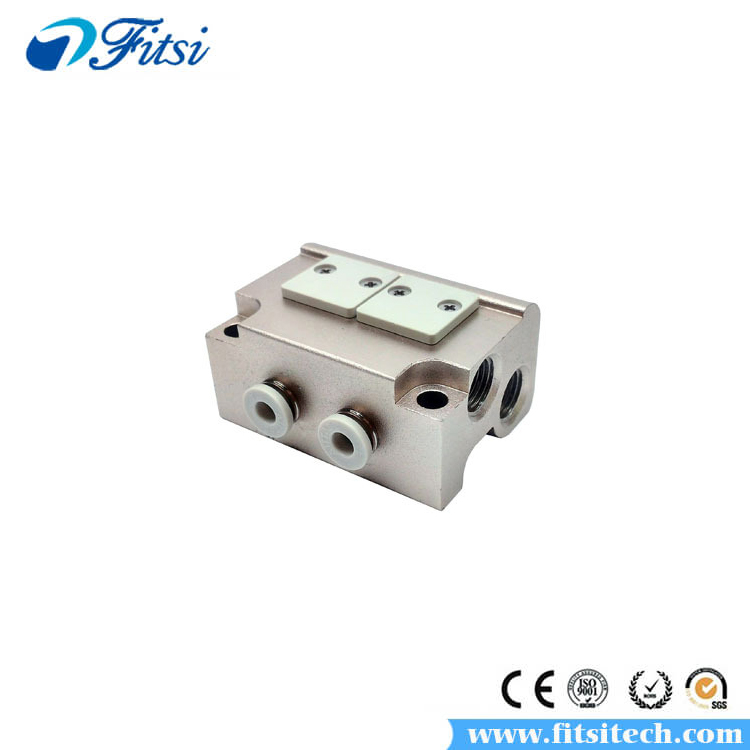

Product Name：CPV15 Series Integrated solenoid Valve Product Model：CPV15M2F CPV15M3F CPV15M4F CPV15M5F CPV15M6F CPV15M7F CPV15M8F CPV15M9F CPV15M10F CPV15M11F CPV15M12F Valve Type：Integrated solenoid Valve Brand：AIRTAC Fluid： Air Acting：Direct acting
| Model: |
CPV15M2F |
CPV15M3F | CPV15M4F | …… | CPV15M12F |
| Fluid: | Air(to be filtered by 40μm filter element) | ||||
| P/R Port size: |
1/8" |
||||
| A PT thtread Port Size: | ∅4mm(Push in fittings) | ||||
| G thtread Port Size: | ∅4mm(Push in fittings) | ||||
| NPT thtread Port Size: | ∅5/32"(Push in fittings) | ||||
| Temperature: | -20~70℃ | ||||
| Applicable valves: | CPV15 series micro-solenoid valve | ||||
1. Intergrated installation save space and reduce additional accessories.
2.Centralized air intake, exhaust, and wiring for quick air circuit checking.
3.Flexible combination and expandability for various applications. Blank plates are optional.
