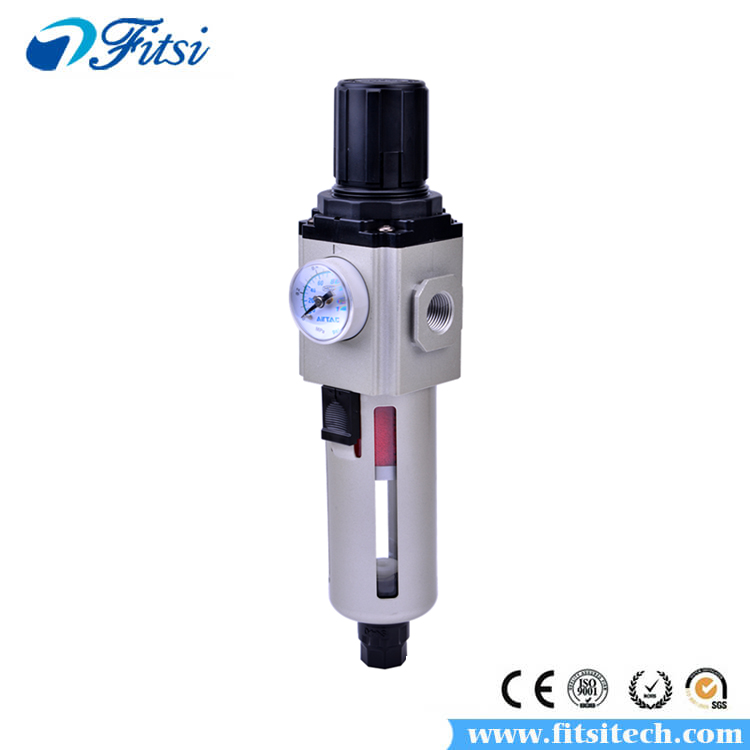

Product Name：GPFR Series Precision filter Airtac Regulator Product Model：GPFR200-06 GPFR200-08 GPFR300-08 GPFR300-10 GPFR400-10 GPFR400-15 Filtering Grade：0.3μm or 0.01μm Brand：AiRTAC Fluid： Air Max Supply Pressure：1.0MPa(145psi) Proof Pressure： 1.5MPa(215psi)
|
Model: |
GPFR200-06 | GPFR200-08 | GPFR300-08 | GPFR300-10 | GPFR400-10 | GPFR400-15 | |
| Fluid: | Air | ||||||
| Port Size: | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | |
| Filtering Grade: | 0.3μm or 0.01μm | ||||||
| Pressure Range: | 0.15~0.9MPa(20~130psi) | ||||||
| Max. Pressure: | 1.0MPa(145psi) | ||||||
| Proof Pressure: | 1.5MPa(215psi) | ||||||
| Temperature Range: | -5~70℃(Unfreeze) | ||||||
| Capacity of Drain Bowl: | 25CC |
60CC |
100CC | ||||
| Weight: | 310g | 500g | 910g | ||||
①PT thread, NPT thread and G thread are available.
1. Circular square pressure gauge which with clip and magnifier is used to save
installation space.
2. The pressed-in self-locking mechanism can prevent the abnormal movement
of the set pressure caused by external interfere.
3. Balanced design is adopted for the pressure adjustment mechanism.
4. Unique diversion structure spins the air flowing through to effectively separate
the liquid from the air and reliably filter the solid grain.
5. The filtering grade includes 0. 3 u m and 0.01 u m(optional).
6. Two drain types are available: semi- auto drain and automatic drain.
7. Three material of bowl are available: PC, Nylon and metal.
8. The bracket can be selected for installation.
Installation & Usage:
1. Check whether the components have been damaged during transportation before installing and using.
2 Pay attention to whether the flow direction of air(notice- direction) and thread type are correct.
3. Please notice whether installation condition accords with technical requirements(such as working pressure and"applied temperature range)
4.Avoid usage in an environment that exposes the fiter and lubricator bow through contact with Chlorine, solvent, aromatic essence, acid and alkali to avoid damage to the Filter and Lubricator bowl.
5. Regularly clean or change filter core Lubric ators and regulators shall be in descending.
6. Keep the dust away The dust cover shall be installed in intake and outlet when the device is dismantled and stored.
